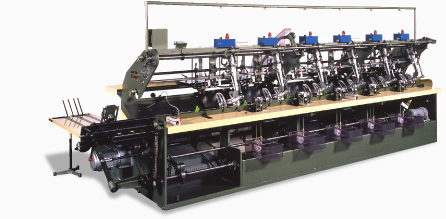

With many thousands of installations, the THS-SERIES tipping machines have proven themselves to greatly enhance productivity in the bindery.
The process of tipping difficult or impossible to run signatures allows greater product variability and flexibility while maintaining high production speeds during adhesive or saddle binding runs.

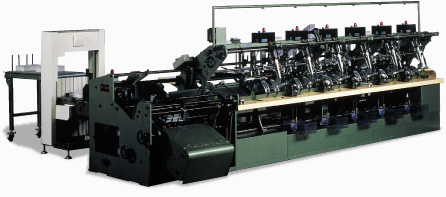

(a)Optional Stacker performs to increase work productivities and labor savings.
(b)Designed to adjust Glue cam positioning by handle while machine is running.
(c)Enclosed glue boxes prevent the glue from drying over longer periods and require less frequent cleaning.
(d)Offered optionally in place of mechanical callipering. A proximity switch detects signature thickness within a .01mm minimum tolerance. An 8-bit computer registers product variance and allows for an adjustable tolerance.
Model
Stations
Format
Size
Max
mechanical
Speed
Power
Requirement
Dimensions
(mm)
Weight
CPH
L
W
H
kg
THS-6
6
A6-B4
6,000
3.1kw
5,000
1,250
1,350
2,250
TH-6
6
A6-B4
6,000
2.7kw
4,300
1,250
1,350
1,700
*Other number of station available.
