High efficient and simple model for Rotary Gathering Machines.

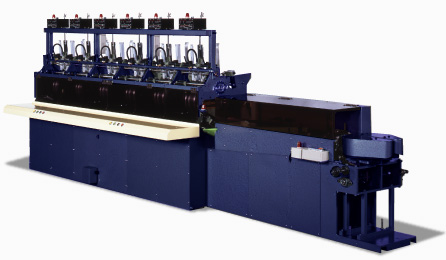

The TR rotary gatherer features a large drum for smooth product delivery, with two signatures delivered per drum rotation.
Optional guarding is shown at left.
Rotary gatherer features a large drum for smooth product delivery, with two signatures delivered per drum rotation. Adjustable drop time adds flexibility.
Inside the rotary mechanism, a rotary gripper takes hold of gathered sheets after the motion has stopped, thus eliminating the percussive noise. This mechanism is also effective in stabilizing the gripping margin regardless of the thickness of the stack. This new rotary grip works for any type of paper and thus drastically reduces scratches in comparison with conventional rotary systems.
(Except when the suctional force is applied in order to prevent clogging of the suction pad and piping and to improve the productivity.
Air is constantly blown out from the vacuum valve (except when the suctional force is applied) in order to prevent clogging of the suction pad and piping, and to improve productivity.
The suction mechanism utilizes an elastic swing pad and greatly reduces errors in operation even for thick books that tend to cause problems.
Model
Stations
Format
Size
Max
mechanical
Speed
Power
Requirement
Dimensions
(mm)
Weight
CPH
L
W
H
kg
TR-6
6
A6-B4
8,000
7.8kw
3,100
1,250
1,600
2,000

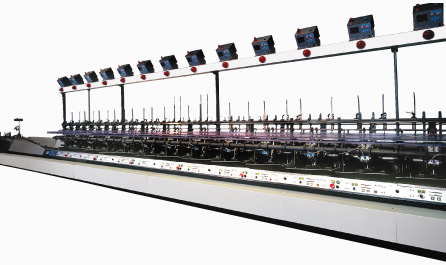

TRA-16
16
A6-B4
12,000
35kw
13,600
1,350
1,350
-
*Other number of station available.
